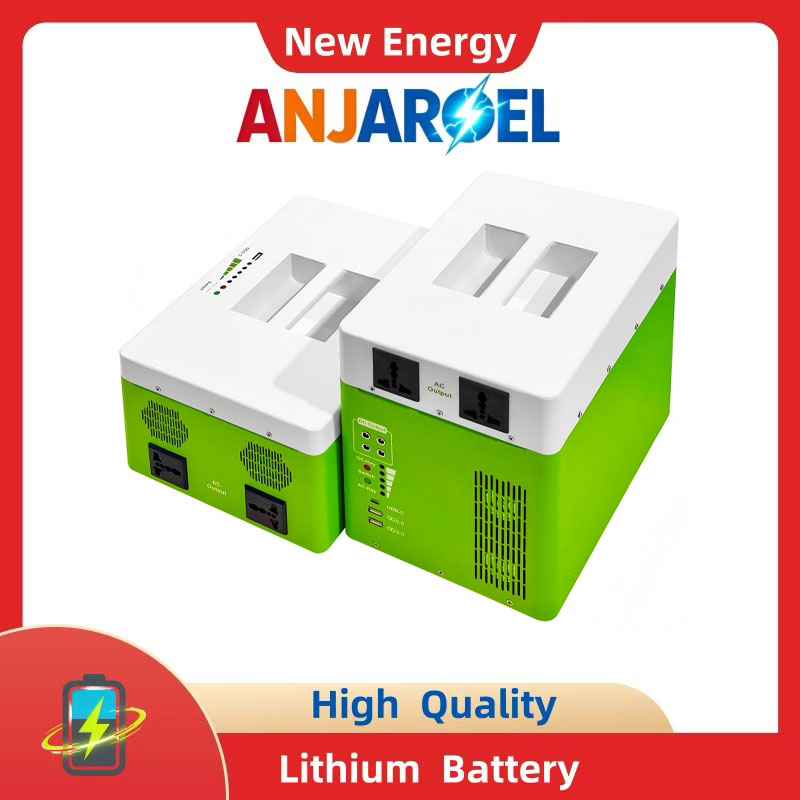

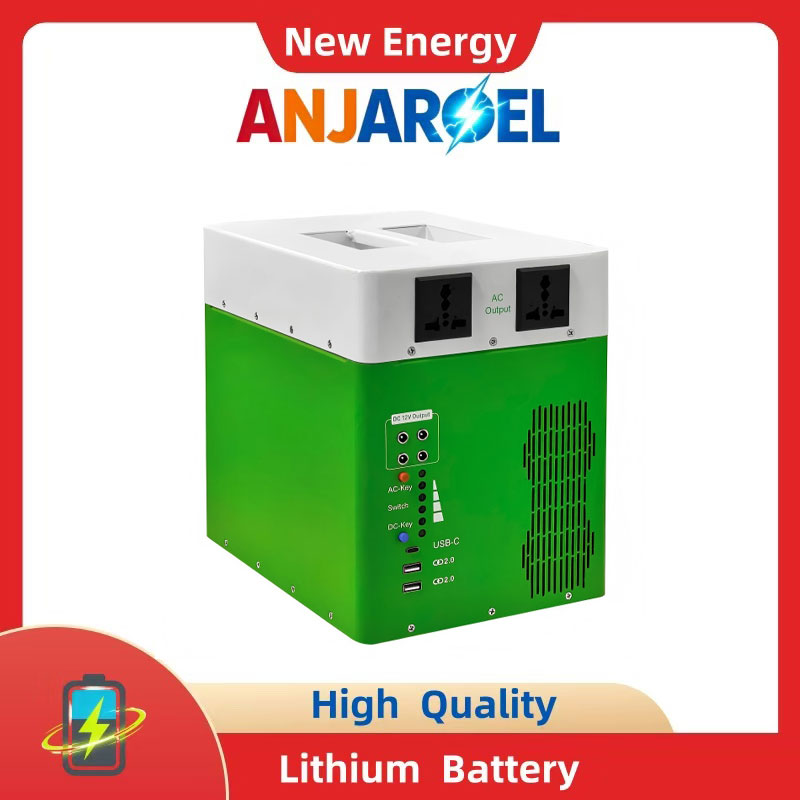

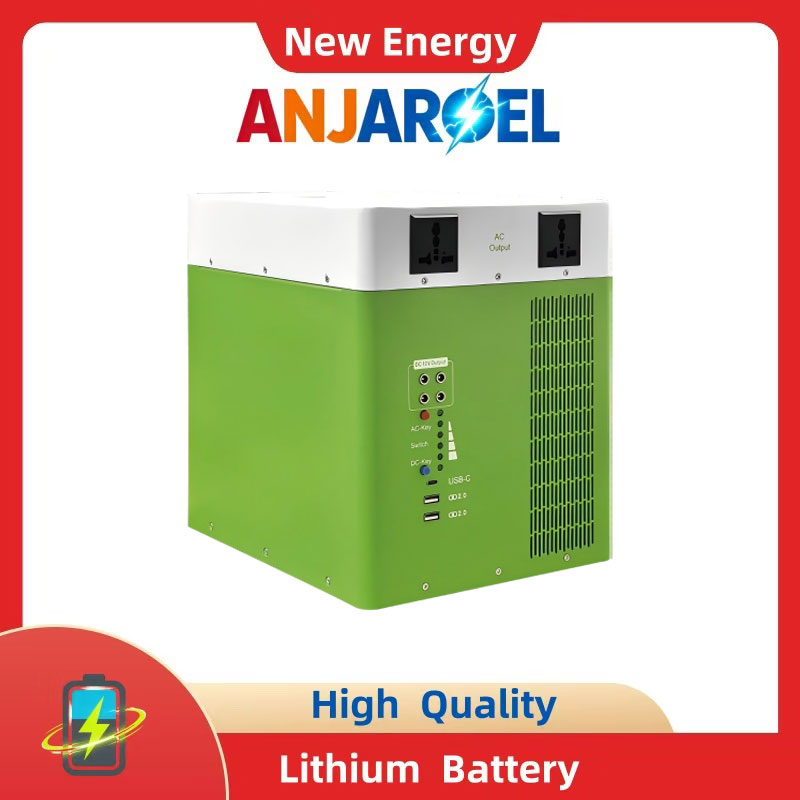

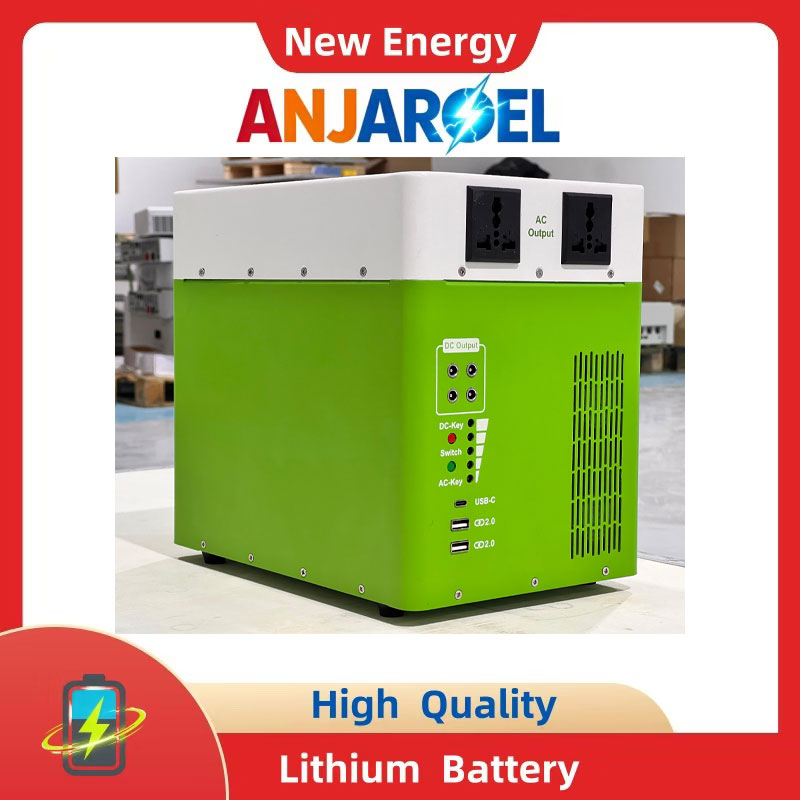

The AJ-PPS500W01 Portable Power Station is a compact, high-performance energy solution powered by a 12.8V 45Ah LiFePO4 battery (576Wh). Delivering 500W continuous pure sine wave AC output (210V~230V 50Hz), it features multiple charging inputs (DC14.6V/DC15.4V~22V) and rich outputs including 10×USB-A, 2×Type-C, 2×DC, and a 12V cigarette lighter port. With an LCD display, LED lighting, SOS function, and metal casing, this 6kg unit is ideal for outdoor camping, home backup, and emergency use, certified to ISO and CE standards.
The AJ-PPS500W01 redefines mobile energy storage by combining industrial-grade durability with sophisticated power delivery. Upon first touch, the cool, textured finish of the heavy-duty metal casing conveys a sense of absolute resilience, engineered to withstand the harsh realities of remote outdoor environments and demanding workspaces. Unlike flimsy plastic alternatives, this chassis acts as a highly efficient passive heat sink, silently dissipating thermal buildup without the constant, intrusive hum of overworked cooling fans. When activated, the crisp, high-contrast LCD screen illuminates instantly, providing precise, real-time metrics on power consumption and remaining capacity with absolute clarity.
The internal architecture utilizes premium lithium iron phosphate chemistry, ensuring that every watt delivered is stable, safe, and consistent. Whether powering sensitive medical equipment during a critical blackout or running heavy-duty communication arrays at a remote geological survey site, the pure sine wave inverter operates with whisper-quiet efficiency, ensuring zero electrical interference. This power station is not merely a battery; it is a comprehensive, fail-safe energy ecosystem designed to keep operations running smoothly when the traditional grid falls short.
Product Advantage |
This portable power station uses a 12.8V 45Ah LiFePO4 battery pack (576Wh) with excellent safety and stability. Compared to lead-acid batteries, it offers longer cycle life, lower self-discharge rate, and no memory effect, ensuring reliable power supply even after years of use. The built-in battery management system protects against overcharge, over-discharge, and over-temperature, extending the battery lifespan.
2. Versatile Multi-Output Design
Equipped with comprehensive output interfaces, the unit powers multiple devices simultaneously. It features 2×pure sine wave AC outlets (500W), 10×USB-A (5V/3A), 2×Type-C (5V/3A), 2×DC (12V/5A), and a 12V cigarette lighter port (120W max). The pure sine wave AC output ensures stable power for sensitive electronics like laptops, cameras, and medical devices, without causing damage or interference.
3. Multiple Charging Input Options
The power station supports dual charging inputs for flexible energy replenishment. It accepts DC14.6V 8A×2 and DC15.4V~22V 5A inputs, compatible with solar panels, car chargers, and wall adapters. This multi-input design allows users to charge the unit from different sources, making it suitable for both on-grid and off-grid scenarios, whether at home, in the car, or outdoors.
4. Durable Metal Casing & Practical Features
Built with a rugged metal casing, the power station offers excellent impact resistance and heat dissipation, ensuring long-term durability. It includes an LCD display for real-time monitoring of battery level, voltage, and current, as well as LED lighting with SOS and flash modes for emergencies. The compact design and lightweight 6kg body make it easy to carry for camping, hiking, and power outages.
5. Certified Safety & 1-Year Warranty
The unit is certified to ISO and CE standards, ensuring compliance with international safety and quality regulations. It features comprehensive protection functions including overcharge, over-discharge, over-current, short-circuit, and over-temperature protection, safeguarding both the battery and connected devices. Backed by a 1-year warranty, it provides reliable after-sales support for peace of mind.
Technical Parameters |
Technical Index | Specification |
Model No. | AJ-PPS500W01 |
Rated Power | 500W |
Battery Type | LiFePO4, 12.8V 45Ah (576Wh) |
AC Output | 210V~230V 50Hz, Pure Sine Wave |
AC Output Power | 500W |
USB-A Output | 10×5V/3A |
Type-C Output | 2×5V/3A |
DC Output | 2×12V/5A |
Cigarette Lighter Output | 12V/10A (120W Max) |
Input | DC14.6V 8A×2, DC15.4V~22V 5A |
Display | LCD Display |
LED Light | Lighting + SOS (Rear Light) + Flash |
Shell Material | Metal |
Weight | 6kg |
Dimensions (Package) | 39.5×31.5×30.5cm |
Certification | ISO, CE |
Warranty | 1 Year |
Production Capacity | 50,000 units/year |
Origin | China |
Transport Package | Carton |
Product Uses |
The power station is ideal for outdoor camping, providing reliable power for lights, coolers, fans, and small appliances. Its multiple outputs charge smartphones, cameras, and portable speakers, while the LED light and SOS function ensure safety at night. The lightweight design and metal casing make it durable and easy to carry for hiking, road trips, and overlanding.
2. Home Emergency Backup Power
During power outages, the unit acts as a backup power source for essential household devices like refrigerators, routers, and medical equipment. The 576Wh battery provides several hours of continuous power, and the pure sine wave output ensures safe operation of sensitive electronics. It can be easily stored and deployed during storms or blackouts.
3. Off-Grid & Remote Work Power
For off-grid cabins, construction sites, and remote work locations, the power station supports solar charging, making it a self-sufficient energy solution. It powers tools, laptops, and communication equipment, enabling work and daily life without grid access. The multi-input design allows for flexible charging from solar panels or generators.
4. RV & Road Trip Power Support
The unit is perfect for RV and road trip use, providing power for appliances, entertainment systems, and mobile devices. The cigarette lighter port enables car charging, while the compact size fits easily in vehicle storage. It eliminates the need for noisy generators, offering quiet and clean power for on-the-go living.
Product Operate Guide |
Place the power station on a flat, stable surface. Charge it using the appropriate input source (wall adapter, car charger, or solar panel). Connect devices to the desired output ports, ensuring the total load does not exceed 500W. Use the LCD display to monitor battery level and status. Activate the LED light or SOS function as needed. Avoid exposing the unit to water or extreme temperatures. Store it in a cool, dry place when not in use.
FAQ |
Below are detailed answers to common technical inquiries regarding the operation, maintenance, and deployment of our 500W Portable Power Station.
A pure sine wave inverter produces a smooth, consistent electrical waveform that matches standard utility grid power. This prevents the harmonic distortion and electrical noise common in cheaper modified sine wave inverters, ensuring that sensitive devices like medical equipment, audio-visual gear, and laptop power supplies operate efficiently without overheating, malfunctioning, or sustaining long-term circuit damage.
Yes. LiFePO4 chemistry is renowned for its exceptionally low self-discharge rate. However, to maintain optimal battery health during long-term storage, we recommend charging the unit to approximately 60-80% capacity and storing it in a cool, dry environment. Performing a routine discharge and recharge cycle every 3 to 6 months will ensure the internal cells remain perfectly balanced and ready for immediate deployment.
The unit fully supports pass-through charging, allowing you to power connected devices while the internal battery is receiving a charge from a wall outlet or solar panel. Our advanced Battery Management System (BMS) intelligently regulates the power flow to minimize heat generation and stress on the cells, ensuring safe operation. While continuous, heavy use of this feature over years may slightly impact the overall lifespan compared to standard cyclical use, the BMS ensures it remains well within safe operational parameters.
The power station accepts a DC input range of 15.4V to 22V with a maximum current of 5A. It is highly compatible with most standard 18V portable solar panels available on the market. Ensuring the solar panel's open-circuit voltage (VOC) does not exceed 22V is critical to prevent triggering the over-voltage protection circuit within the BMS.
Unlike plastic enclosures that can trap heat and become brittle in cold environments, the rugged metal casing serves a dual purpose. First, it acts as a massive passive heat sink, drawing thermal energy away from the battery cells and inverter board, which drastically reduces the reliance on internal cooling fans. Second, it provides superior structural integrity, protecting the volatile internal components from blunt force impacts, punctures, and the rigors of industrial transport.
