The AJ-ES-6KW16KWH is an integrated all-in-one energy storage system designed for residential, commercial, and industrial applications. Combining a 6kW inverter, 16kWh LiFePO4 battery pack, and 160A MPPT controller in a single unit, it operates at 51.2V (314Ah). With IP65 protection, wide -10°C~+50°C operating range, and A-grade LiFePO4 cells, it delivers reliable off-grid/grid-tied power for solar self-consumption, peak shaving, and emergency backup scenarios.
The AJ-ES-6KW16KWH represents a significant leap forward in modern energy management, meticulously engineered to provide absolute power continuity while eliminating the friction of traditional installations. Encased in a solid, vibration-free industrial chassis with a refined matte finish, the system exudes durability. Its tactile, premium build quality ensures it remains visually unobtrusive yet highly resilient, whether placed in a compact indoor utility room or a demanding outdoor enclosure. When activated, the unit operates with a whisper-quiet hum, a direct result of its highly efficient internal thermal management and advanced acoustic dampening materials.
By consolidating the power inverter, the high-capacity battery matrix, and the solar charge controller into a single monolithic structure, this system completely eradicates the chaotic web of external wiring typically associated with multi-component setups. This streamlined architecture drastically accelerates project turnover rates, allowing installation contractors to move swiftly from one site to the next. Decision-makers and project managers will immediately recognize the value in reduced labor costs and minimized points of failure. Furthermore, the intelligent power routing guarantees that critical infrastructure—ranging from sensitive medical appliances to heavy-duty commercial servers—remains fully operational during unexpected grid failures, effectively safeguarding operations, preserving data, and maximizing long-term energy independence.
Product Advantage |
The 16kWh energy storage paired with a 6kW continuous output supports full home power needs, including air conditioning, refrigerators, and lighting. The all-in-one structure eliminates complex wiring between the inverter and battery, reducing installation costs and failure points.
2. Industrial-Grade Safety & Durability
Built with A-grade LiFePO4 cells and comprehensive overcharge protection, the system features IP65-rated protection against dust and moisture. The robust build withstands harsh environments, withstanding temperatures from -10°C to +50°C, making it suitable for both indoor and outdoor installations.
3. Smart & Versatile Connectivity

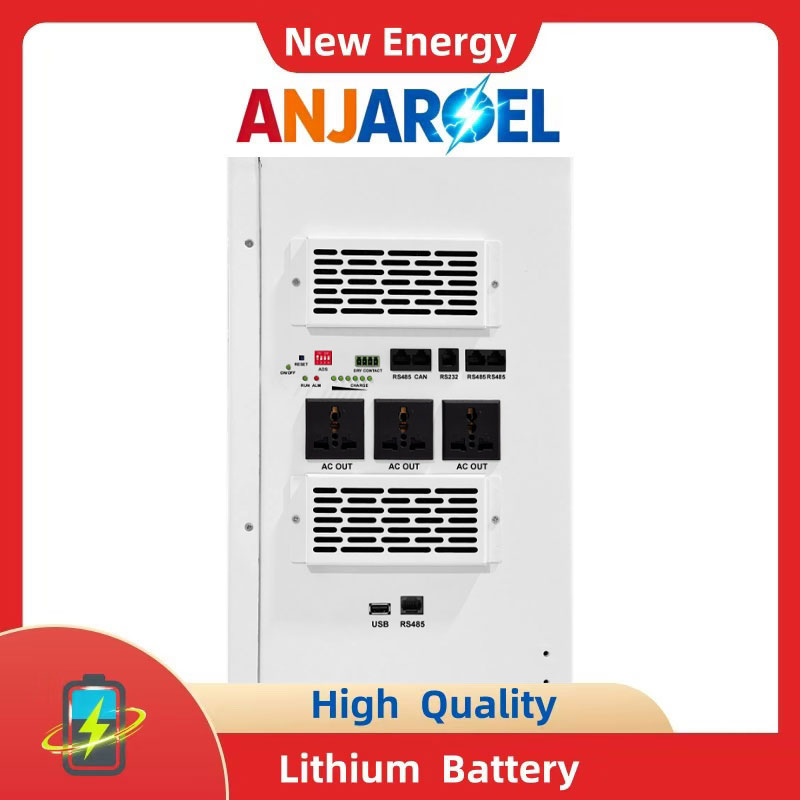

Equipped with RS232/RS485 communication ports, the system supports remote monitoring and control. It integrates seamlessly with solar panels via the 160A MPPT controller, optimizing energy harvesting for maximum efficiency.
4. Certified Quality & Compliance
Certified by CE, CB, and ISO standards, the unit meets global safety and performance requirements. With a production capacity of 100,000 units/year, it ensures consistent quality for mass residential and commercial deployments.
5. Compact & Mobile-Friendly Design
At 106×48×26cm and 124kg, the system is designed with built-in casters for easy mobility and installation. The compact footprint fits in small utility rooms or outdoor enclosures, making it ideal for both new and retrofit installations.
Technical Parameters |
Parameter | Specification |
Model No. | AJ-ES-6KW16KWH |
Nominal Capacity | 16 kWh |
Battery Type | LiFePO4 (LFP) |
Standard Voltage | 51.2 V |
Operating Capacity | 314 Ah |
AC Input | 220-240 V |
MPPT Current | Max 160 A |
Operating Temperature | -10°C ~ +50°C |
Protection Level | IP65 |
Communication Ports | RS232, RS485 |
Product Dimensions | 106 × 48 × 26 cm |
Gross Weight | 124 kg |
Certifications | CE, CB, ISO |
Applications | Commercial, Industrial, Home |
Product Uses |
Store excess solar energy generated during the day for use at night or during grid outages, reducing reliance on utility power and lowering electricity bills.
2. Commercial & Industrial Peak Shaving
Reduce demand charges by storing energy during off-peak hours and using it during high-demand periods, optimizing operational costs for businesses.
3. Off-Grid & Remote Power Systems
Provide reliable power for remote locations such as cabins, telecom towers, and construction sites, where grid access is limited or unavailable.
4. Emergency Backup Power
Deliver uninterrupted power to critical loads during blackouts, including medical equipment, communication systems, and essential home appliances.
Product Operate Guide |
Install the system in a well-ventilated, dry location, ensuring proper clearance around the unit. Connect the solar panels to the MPPT controller and the grid/load to the AC terminals. Use the built-in LCD to monitor system status, including battery level, power flow, and operating temperature. The unit supports both on-grid and off-grid modes, configurable via the communication interface.
FAQ |
To assist procurement managers and technical directors in their evaluation process, we have compiled detailed answers to the most critical operational inquiries regarding the AJ-ES-6KW16KWH system.
The advanced 160A Maximum Power Point Tracking (MPPT) controller continuously scans the solar array's voltage and current output in real-time. By dynamically adjusting the electrical operating point, it ensures the maximum possible power is extracted from the panels, even during partial shading or rapidly changing cloud cover, thereby accelerating the recharge rate of the 16kWh battery.
Thanks to the highly stable chemistry of A-grade LiFePO4 cells and the intelligent balancing of the built-in BMS, the battery module is virtually maintenance-free. The system automatically regulates cell voltage and thermal output. We simply recommend keeping the exterior IP65 casing clear of heavy debris and ensuring the installation site remains within the -10°C to +50°C operating range.
Yes. The 6kW continuous output is engineered with high surge capacity specifically to accommodate the initial inrush currents demanded by inductive loads like commercial compressors, HVAC units, and heavy-duty pumps. The pure sine wave output ensures these sensitive motors run smoothly without the overheating issues caused by modified sine waves.
An IP65 rating signifies that the enclosure is completely dust-tight and protected against low-pressure water jets from any direction. In real-world terms, this means the unit can be safely installed in outdoor environments exposed to rain, coastal salt spray, or dusty industrial sites, without risking internal corrosion or electrical short circuits.
Through the integrated RS232 and RS485 communication ports, the system can be connected to cloud-based monitoring platforms. Fleet managers can remotely view real-time metrics such as state of charge (SOC), state of health (SOH), historical power generation, and fault codes. This allows for proactive maintenance and remote troubleshooting, significantly reducing the operational costs associated with on-site service visits.
