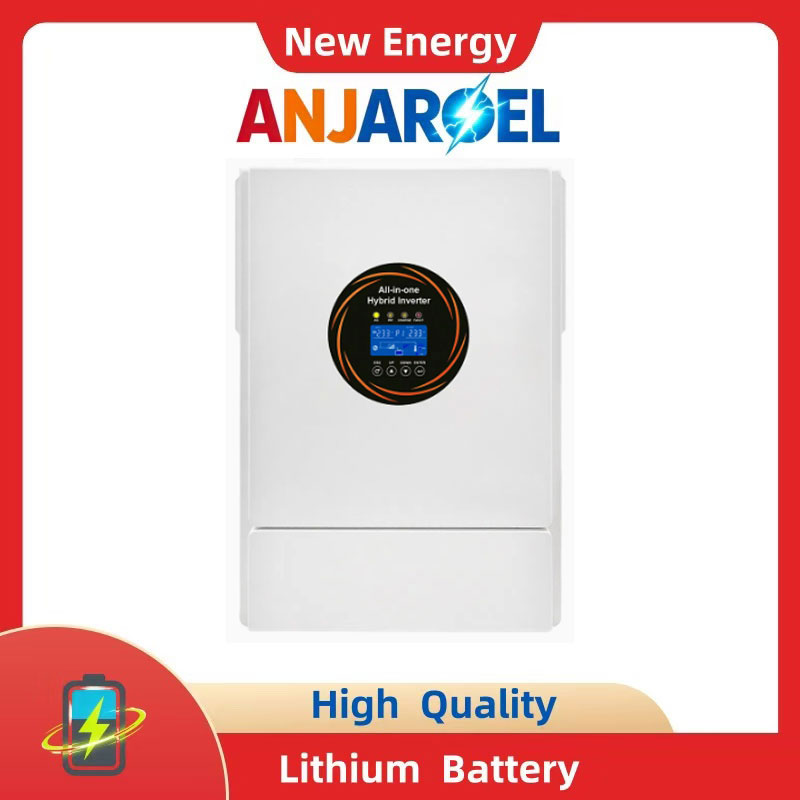

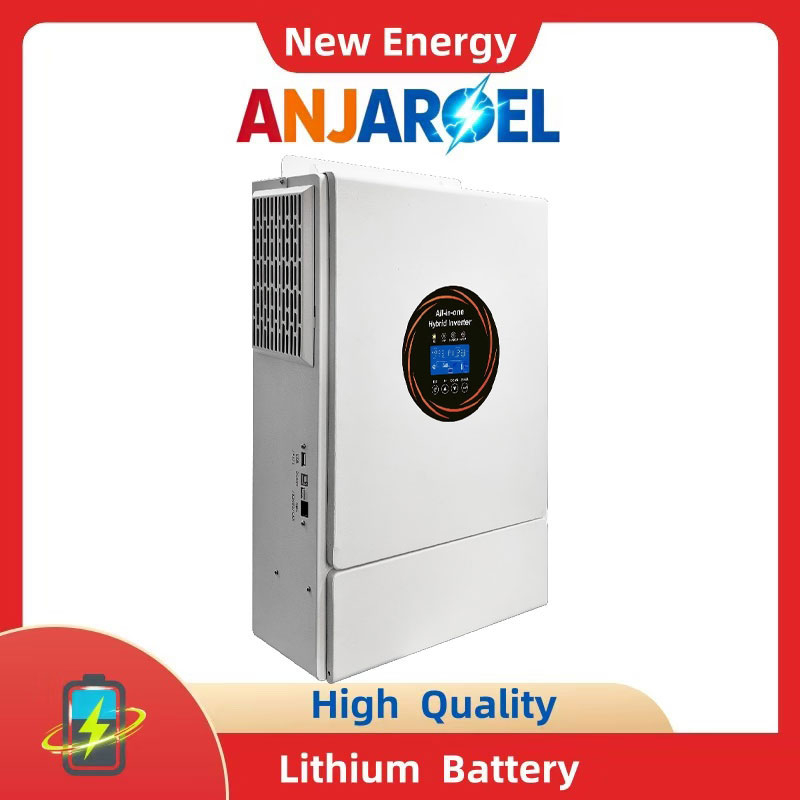

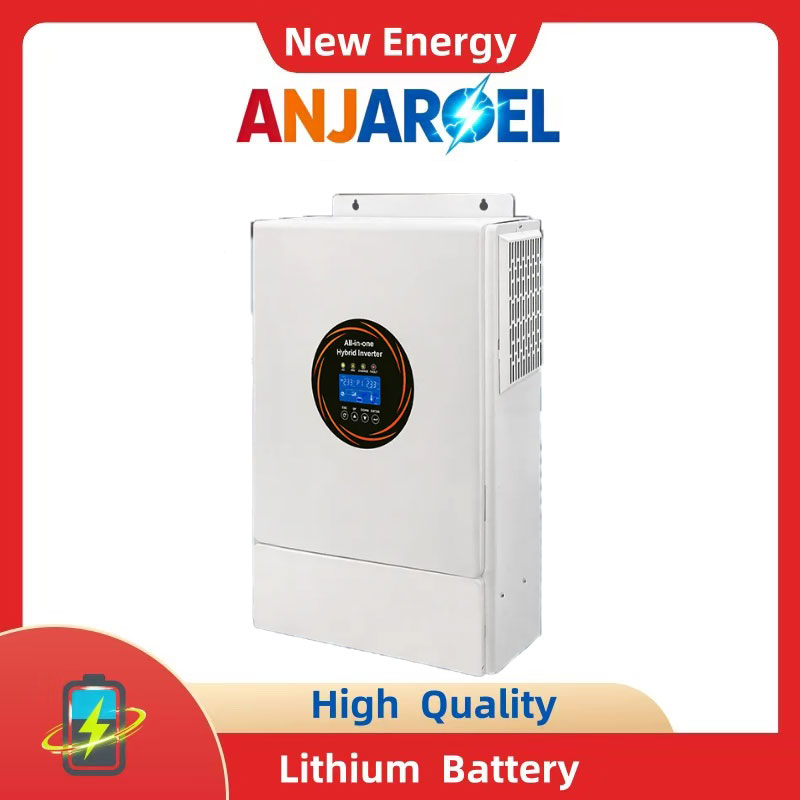

AJ-5.5KW 48V Off-Grid Solar Inverter

Product Overview

The AJ-5.5KW is a high-performance 48V off-grid hybrid solar inverter designed for residential and small commercial solar systems. Combining a 5500W pure sine wave inverter with a 160A MPPT charge controller, it supports PV input from 60V to 500V and 220/230V AC output. Compatible with 48V lithium-ion batteries, it features multiple communication interfaces (RS232/RS485/Dry Contact) and smart fan cooling. With 360° protection and >90% peak efficiency, it’s ideal for off-grid homes, cabins, and remote power systems.

Product Description

Step into a new tier of energy independence with the AJ-5.5KW 48V Off-Grid Hybrid Solar Inverter. Crafted with a sleek, industrial-grade metallic chassis, this device feels remarkably solid to the touch, reflecting the premium engineering housed within. When operational, the intelligent cooling fans emit a quiet, reassuring hum that speaks to its thermal efficiency, ensuring the internal components remain cool even under the heavy electrical demands of air conditioners, industrial refrigerators, or workshop machinery. The front interface features a crisp, brightly lit LCD screen that provides immediate, crystal-clear visual feedback on your energy metrics, eliminating the guesswork from daily power management and system diagnostics.

Beyond its refined exterior, this inverter is built to solve the most pressing power continuity challenges faced by remote facilities and off-grid properties. By transforming raw DC solar energy into clean, stable 220V/230V AC power, it protects highly sensitive electronics from the erratic voltage spikes commonly associated with lesser power sources. The pure sine wave output ensures that inductive motors run cooler and audio-visual equipment operates without the distracting buzz of electrical interference. Whether you are outfitting an isolated rural estate or establishing a dependable power foundation for a remote commercial outpost, this inverter delivers relentless, uncompromising power stability day and night.

1. High-Power Off-Grid Conversion

Delivering a continuous 5500W pure sine wave AC output, the AJ-5.5KW powers most household appliances, from refrigerators to air conditioners. The full-bridge+push-pull circuit topology ensures stable and clean power delivery, protecting sensitive electronics from voltage fluctuations. The inverter supports AC input for hybrid operation, ensuring power continuity even in low-sunlight conditions.

2. Integrated 160A MPPT Solar Controller

Built with a high-efficiency 160A MPPT controller, the inverter maximizes solar energy harvesting from panels with 60V-500V input range. The advanced tracking algorithm ensures optimal power conversion even in varying light conditions, with peak efficiency exceeding 90%. This significantly reduces energy waste and shortens battery charging time.

3. Wide Compatibility & Communication

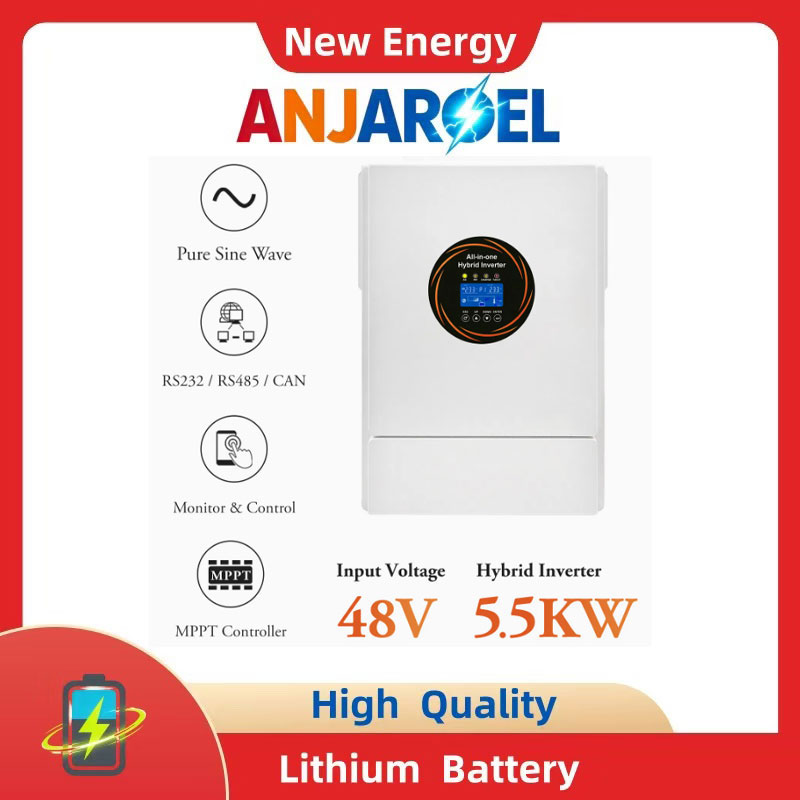

The inverter is fully compatible with 48V lithium-ion batteries, supporting seamless integration with most residential battery storage systems. It features multiple communication interfaces (RS232/RS485/Dry Contact) for remote monitoring and control, allowing users to track system performance and adjust settings via external devices or home automation systems.

4. Comprehensive Safety & Durability

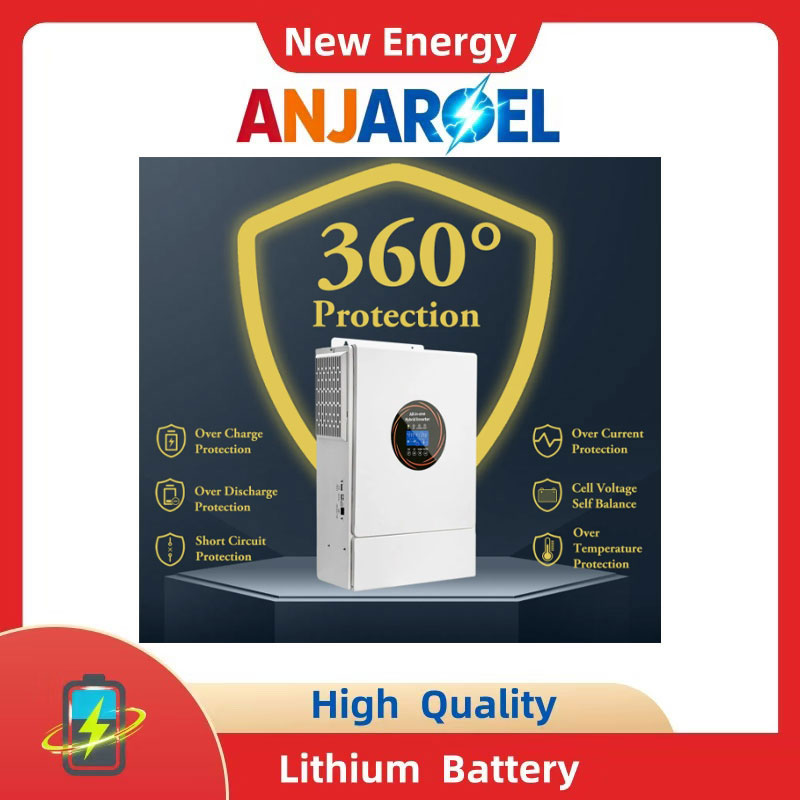

Equipped with 360° protection features including overcharge, overdischarge, short-circuit, overcurrent, and over-temperature protection, the AJ-5.5KW ensures safe and reliable operation. The smart fan cooling system prevents overheating during continuous use, while the rugged build withstands indoor and outdoor installations (depending on enclosure rating).

5. Compact Design & Easy Installation

With dimensions of 536×352×135mm and a net weight of 10.5kg, the inverter is compact and lightweight for easy wall mounting. The user-friendly interface and LCD display simplify setup and operation, making it suitable for both DIY and professional installations. The system supports standalone operation and works without batteries on sunny days.

1. Off-Grid Residential Solar Systems

The AJ-5.5KW is ideal for off-grid homes, cabins, and remote properties, providing reliable power from solar panels. It converts DC solar energy into usable AC power, supporting all household appliances. The integrated MPPT controller maximizes energy use, while the optional battery backup ensures power availability at night or during cloudy days.

2. Small Commercial & Remote Power Systems

Small businesses, farms, and construction sites benefit from the inverter’s high-power output and robust performance. It powers tools, lighting, and office equipment, reducing reliance on noisy generators. The multiple communication interfaces enable remote monitoring, making it suitable for off-grid locations with limited access.

3. Backup Power for Grid-Tied Homes

For homes with unreliable grid service, the AJ-5.5KW serves as a backup power system. It connects to solar panels and batteries, automatically switching to off-grid mode during blackouts. The AC input support allows hybrid operation, ensuring continuous power supply regardless of grid conditions.

4. Renewable Energy Education & Demonstration

Schools, research facilities, and eco-centers use the inverter for solar energy education and demonstration projects. Its user-friendly interface and monitoring capabilities make it ideal for teaching students about renewable energy systems. The compact design allows for easy installation in labs and classrooms.

Install the inverter in a well-ventilated, cool location. Connect solar panels to the PV input terminals, observing voltage polarity. Connect the 48V lithium-ion battery to the DC input. Connect household appliances to the AC output. Use the LCD display to monitor system status and adjust settings. Ensure proper grounding and follow local electrical codes. The system can operate without batteries during sunny conditions.

Below are detailed answers to the most common technical inquiries we receive from system designers and project managers regarding the deployment and capabilities of the AJ-5.5KW inverter.

• Q1: Can the AJ-5.5KW inverter directly power heavy inductive loads like industrial motors or large air conditioners?
  A1: Yes. Thanks to its robust Full-Bridge and Push-Pull circuit topology, the inverter can comfortably handle the high surge currents associated with inductive loads, provided the continuous draw remains within the 5500W rated limit.

• Q2: How does the battery-less operation mode function in fluctuating weather conditions?
  A2: In battery-less mode, the inverter directly powers the load from the solar array. However, if a cloud passes and solar generation drops below the load requirement, the inverter will instantly pull supplementary power from a connected AC grid or generator to prevent system shutdown.

• Q3: Are there any risks of this off-grid inverter feeding power back into the utility grid?
  A3: Absolutely not. The system is designed with a strict off-grid logic and physical anti-feed-in mechanisms. It can draw power from the grid to charge batteries or support loads, but it will never export solar energy back to the grid, ensuring full compliance with zero-export regulations.

• Q4: What BMS communication protocols are supported for 48V lithium-ion batteries?
  A4: The inverter utilizes RS485 and RS232 ports to communicate with the BMS of most leading 48V lithium-ion battery brands. This allows the inverter to read precise state-of-charge (SOC) data and adjust its charging algorithms to maximize battery health and lifespan.

• Q5: If our energy requirements grow, can we connect multiple AJ-5.5KW units in parallel?
  A5: No, the AJ-5.5KW is specifically engineered as a standalone unit to maximize reliability and simplify installation for independent circuits. For larger power requirements, we recommend splitting the loads across multiple independent inverter-battery systems.

• Q6: What maintenance is required for the smart fan cooling system?
  A6: The smart fans are designed for longevity and only activate under high thermal loads. Routine maintenance simply involves periodically wiping down the external ventilation slots to prevent dust accumulation, ensuring optimal airflow and sustained high-efficiency operation.
