ANJAROEL

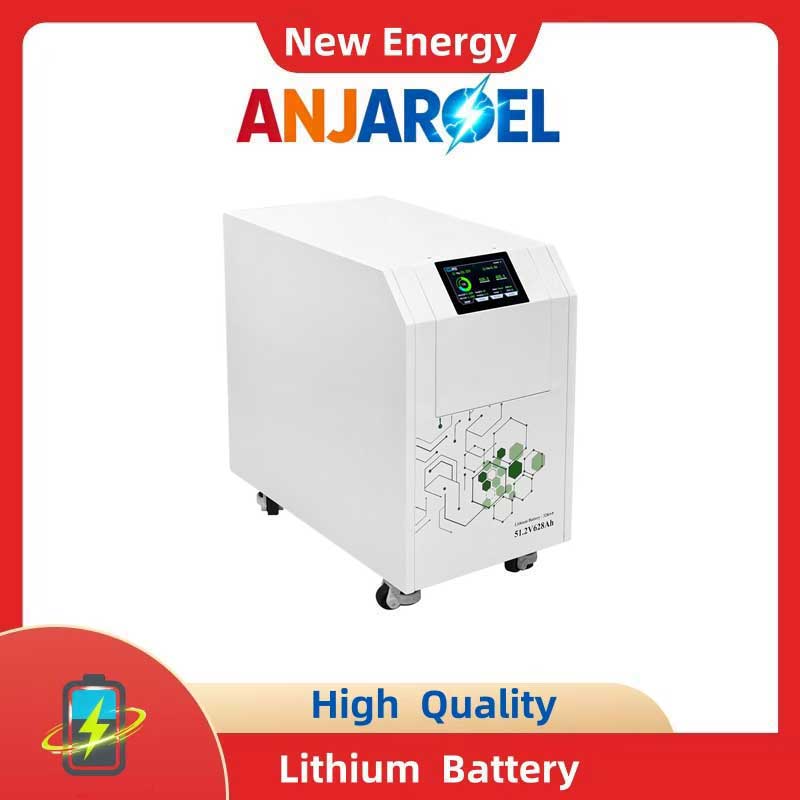

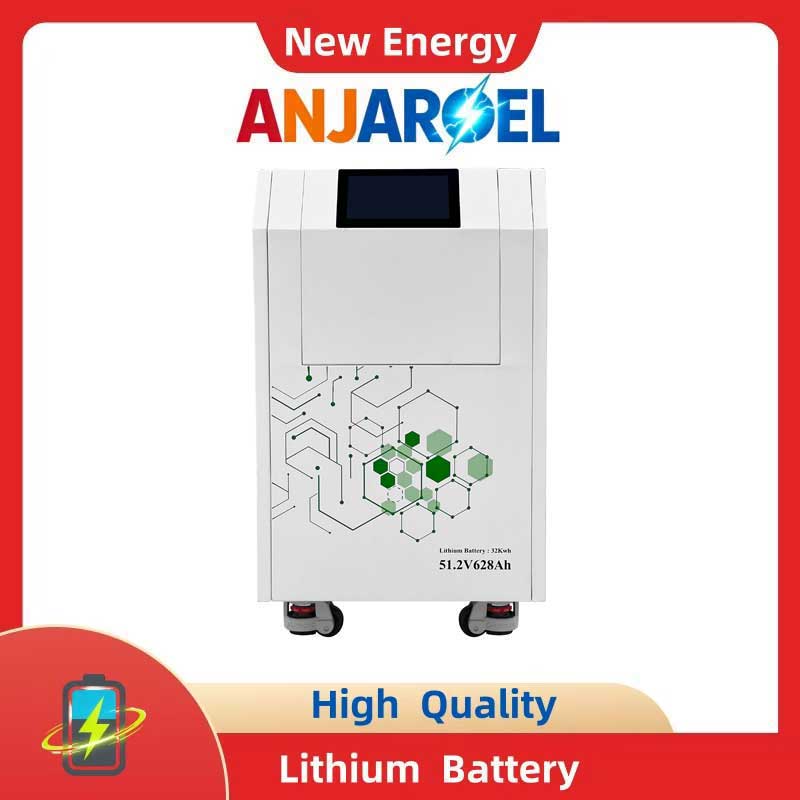

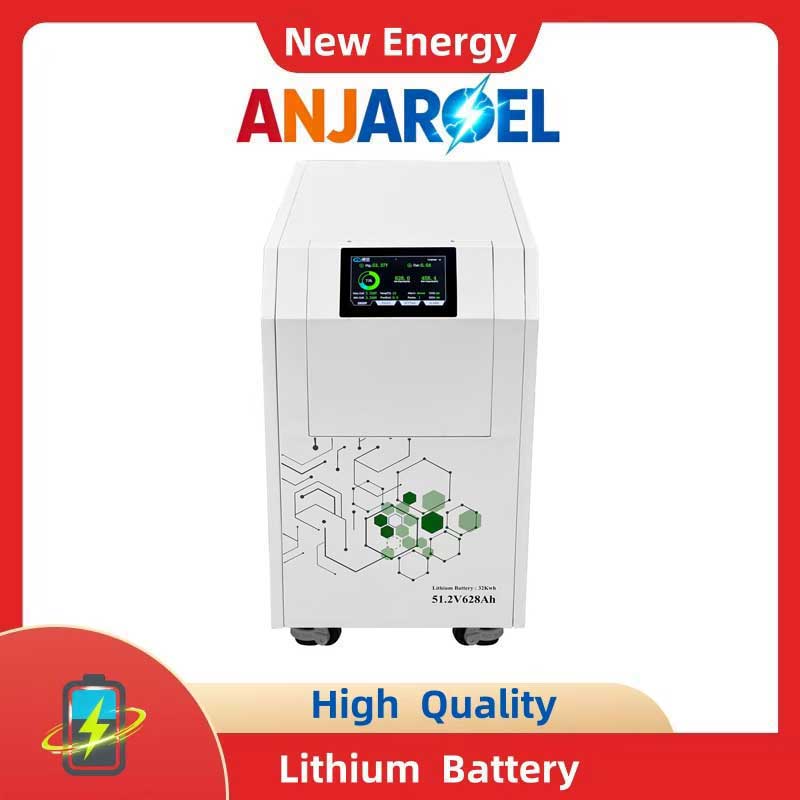

This 51.2V 628Ah 32kWh Movable LiFePO4 Battery is a wheel-integrated all-in-one energy storage solution with total 32000Wh capacity. Equipped with built-in intelligent BMS system and multi-protocol communication (RS485/RS232/CAN), it reaches up to 10000 charge cycles at 80% DOD and 6000 cycles at 90% DOD. Designed with universal moving casters for flexible relocation, it supports hybrid input from solar PV, utility grid or generator, perfectly matching residential off-grid solar, home backup power, RV and commercial emergency energy storage scenarios.
This 51.2V 32kWh movable LiFePO4 battery represents a reliable and high-density energy storage solution meticulously engineered for residential solar backup and off-grid power scenarios. Featuring a 628Ah large capacity design, this deep-cycle battery delivers ample sustainable power reserve to support daily household electricity consumption, emergency power backup and long-term off-grid energy operation. Built with premium lithium iron phosphate cells, the unit boasts an ultra-long lifespan of 10,000 deep cycles, ensuring exceptional durability, stable performance and lower long-term replacement costs compared with conventional batteries.
Designed with practical mobility in mind, this wheeled energy storage pack integrates flexible universal wheels and an integrated sturdy casing, enabling effortless movement and flexible deployment for both indoor and outdoor use. Rated IP22, it provides effective protection against dust and splashing water, adapting to complex home and outdoor installation environments for enhanced operational safety and stability.
Equipped with a smart BMS battery management system and standard RS485/CAN communication interfaces, the battery supports real-time cell monitoring, overcharge and over-discharge protection, current limitation and temperature control. It enables precise intelligent energy management, seamless system matching with solar inverters, and stable collaborative operation for home solar storage systems. Ideal for off-grid self-power supply, residential emergency backup and daily solar energy storage, this movable battery delivers safe, efficient and long-lasting green power for modern households.
Product Advantage |
Adopts premium grade-A LiFePO4 cells, realizing ≥6000 cycles@90%DOD and up to 10000 cycles@80%DOD under 25℃, far surpassing traditional lead-acid and ordinary lithium batteries. It drastically cuts later replacement and maintenance cost for long-term solar system operation.
32kWh large energy capacity with 628Ah rated capacity; 150A max continuous charging current and 200A max continuous discharging current, stably supporting high-power household appliances and off-grid equipment without voltage drop under heavy load.

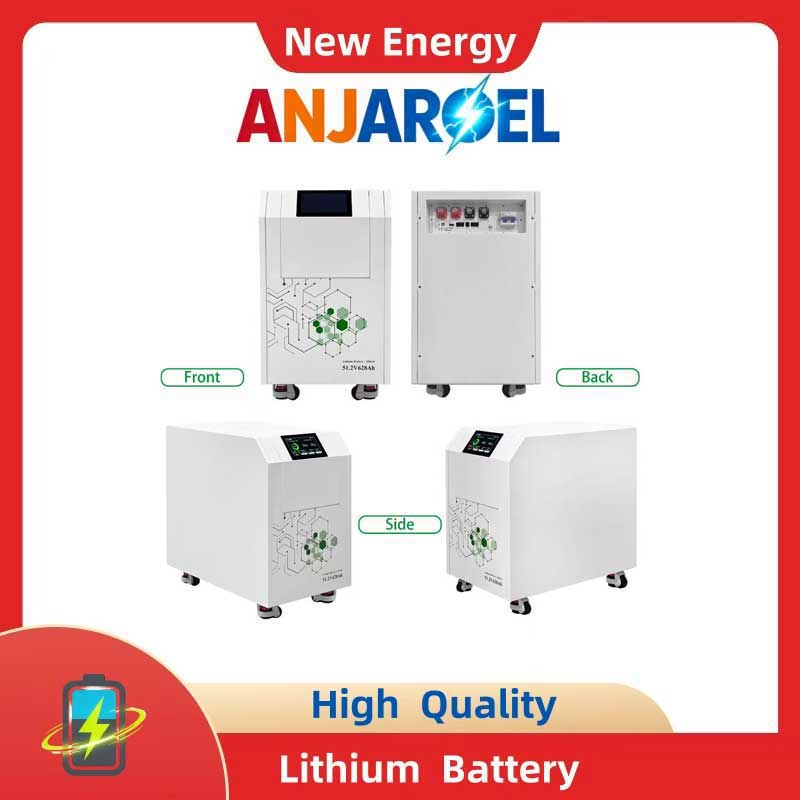

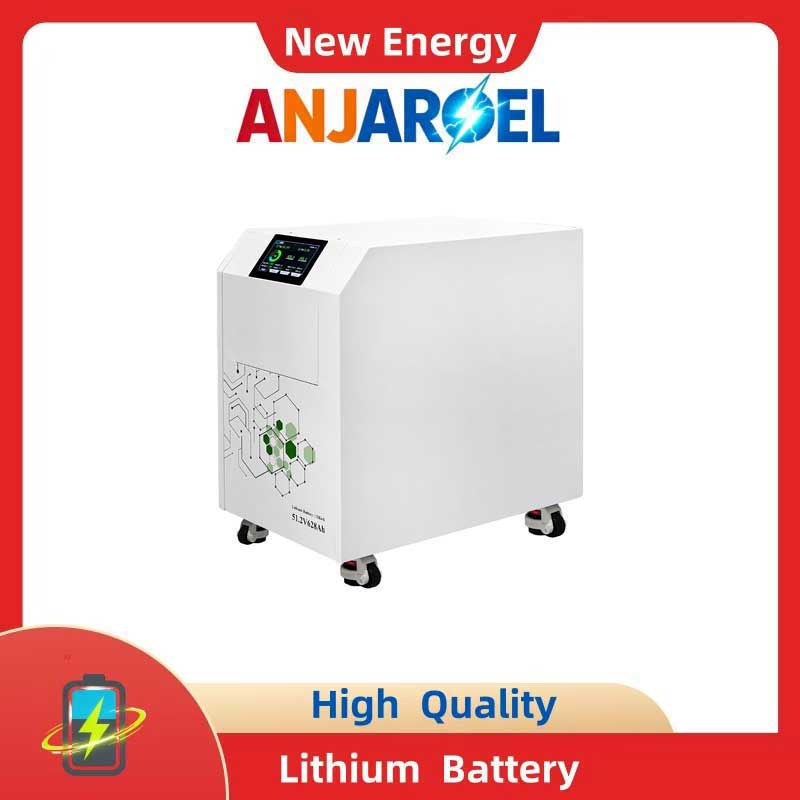

Built-in heavy-duty universal moving casters, users can freely shift the battery between rooms, workshops or outdoor cabins without complicated disassembly, ideal for mobile backup and seasonal power use. Compact cabinet structure saves indoor installation space.
Integrated professional BMS with full protection of overcharge, over-discharge and over-current; supports RS485/RS232/CAN communication for real-time data linkage with solar inverters and remote monitoring systems, easy to realize intelligent energy management.
Discharge working range: -20℃~+55℃, charge range: 0℃~+55℃, 5%~90% non-condensing relative humidity, max 4000m applicable altitude with IP22 protection rating, adaptable to diverse indoor and mild outdoor installation environments.
Technical Parameters |
Item | Specification |
Model | MB 512628 |
Nominal Voltage | 51.2V(16S) |
Rated Capacity | 628Ah |
Total Energy | 32000Wh(32kWh) |
Cut-off Discharge Voltage | 44V |
Cut-off Charge Voltage | 58.4V |
Float Charging Voltage | 56V |
Max Continuous Charge Current | 150A |
Max Continuous Discharge Current | 200A |
Cycle Life | ≥6000@90%DOD; ≥10000@80%DOD(25℃) |
Communication Port | RS485 / RS232 / CAN |
Discharge Temp | -20℃ ~ +55℃ |
Charge Temp | 0℃ ~ +55℃ |
Relative Humidity | 5% ~ 90% Non-condensing |
Protection Grade | IP22 |
Product Dimension | 740×445×745mm |
Net/Gross Weight | 210kg / 238.5kg |
Storage Tip | Full charge at least once every 3 months |
Product Uses |
Collocate with rooftop solar panels to store daytime surplus PV power for night domestic use, realize self-sufficient household electricity and reduce grid electricity expense, movable design convenient for seasonal adjustment of installation position.
When municipal grid blackout happens, quickly supply power for fridge, lighting, water pump and essential home devices, effectively avoiding loss caused by sudden power failure.
Suitable for mobile RV, countryside prefab cabin and field temporary residence, wheeled structure easy to transport, stable performance adapts to outdoor variable temperature environment.
For small retail shops, offices and equipment rooms, used as standby power to safeguard cash register, monitoring system and critical electrical equipment from unexpected outage.
Product Operate Guide |
Place the battery on flat dry ground; connect PV array, grid or generator to corresponding input terminals according to topology diagram, link household loads to AC output end. Check real-time running data via communication-connected monitoring device; store the battery with full charge and replenish power every 3 months for long-term idle storage. Avoid using beyond specified temperature and current range.
FAQ |
To assist procurement managers and technical directors in their evaluation process, we have compiled detailed answers to the most critical operational inquiries regarding the 32KWH Lithium Battery.
Q1: Can this battery be moved easily to different rooms?
A1: Yes, equipped with four heavy-duty movable casters, you can push and shift the whole unit conveniently without lifting.
Q2: What is the service life of this LiFePO4 battery?
A2: It can reach over 6000 cycles at 90% DOD and up to 10000 cycles at 80% DOD, normally over 10 years service lifespan under regular use.
Q3: Can it connect with solar, grid and generator simultaneously?
A3: Supported, the system topology allows three kinds of power source to charge the battery selectively for hybrid off-grid operation.
Q4: Does it support remote monitoring via inverter?
A4: Yes, equipped with RS485/CAN/RS232 multi communication ports to match most mainstream hybrid inverters for data reading and remote management.
