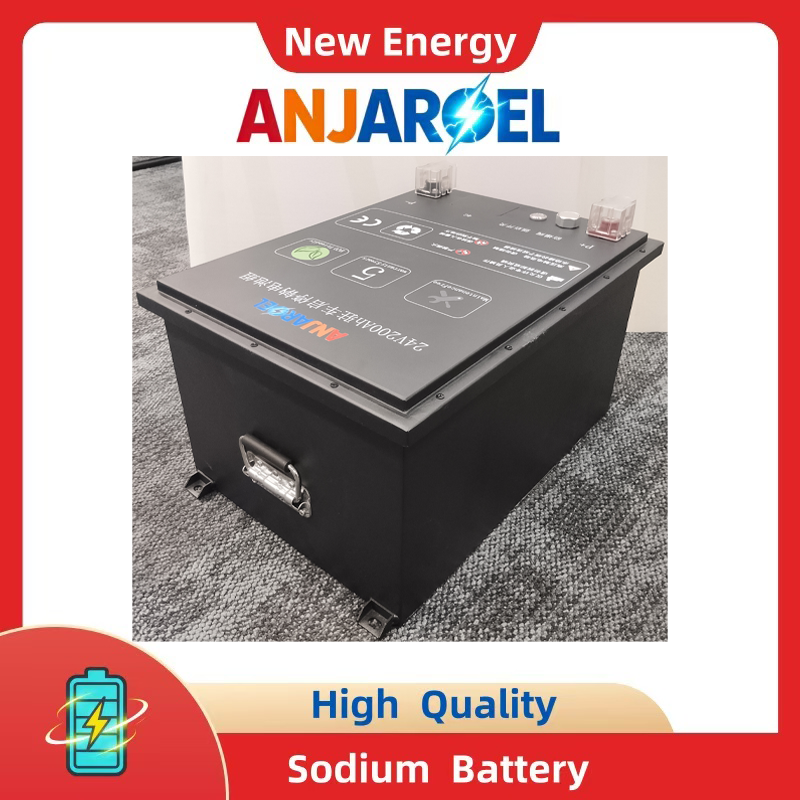

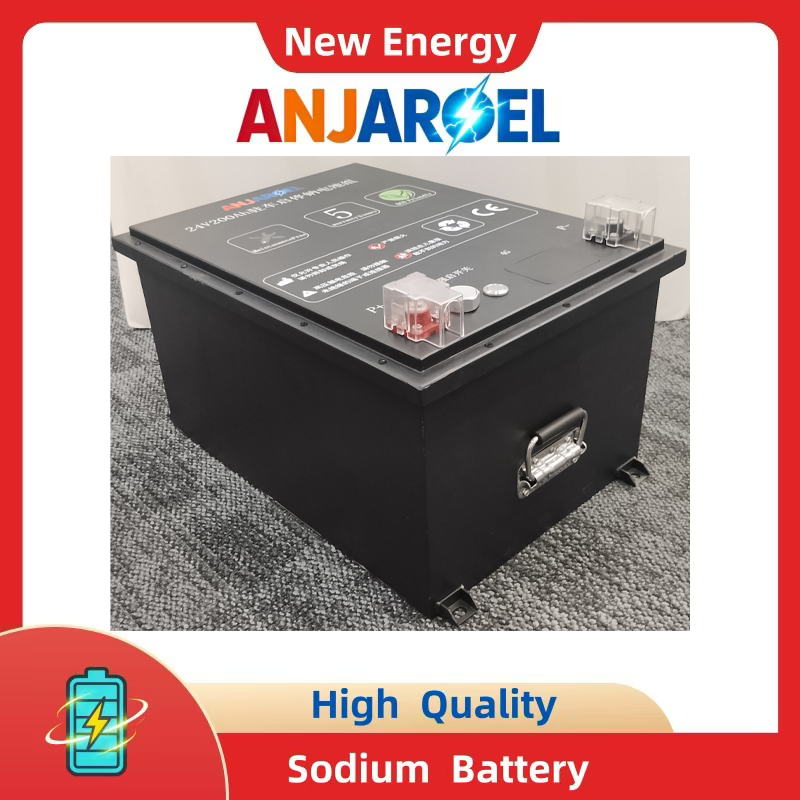

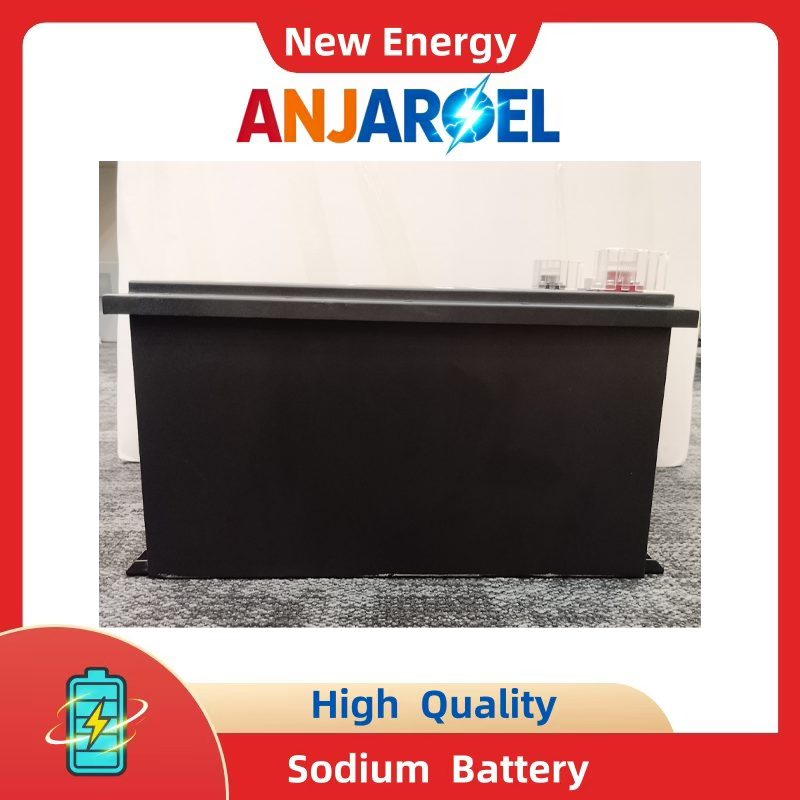

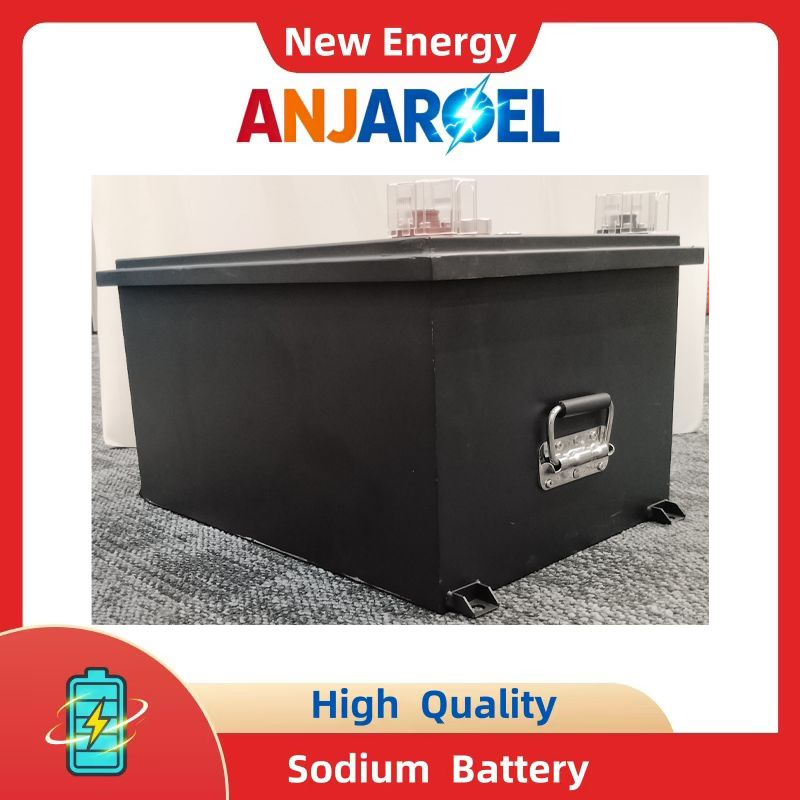

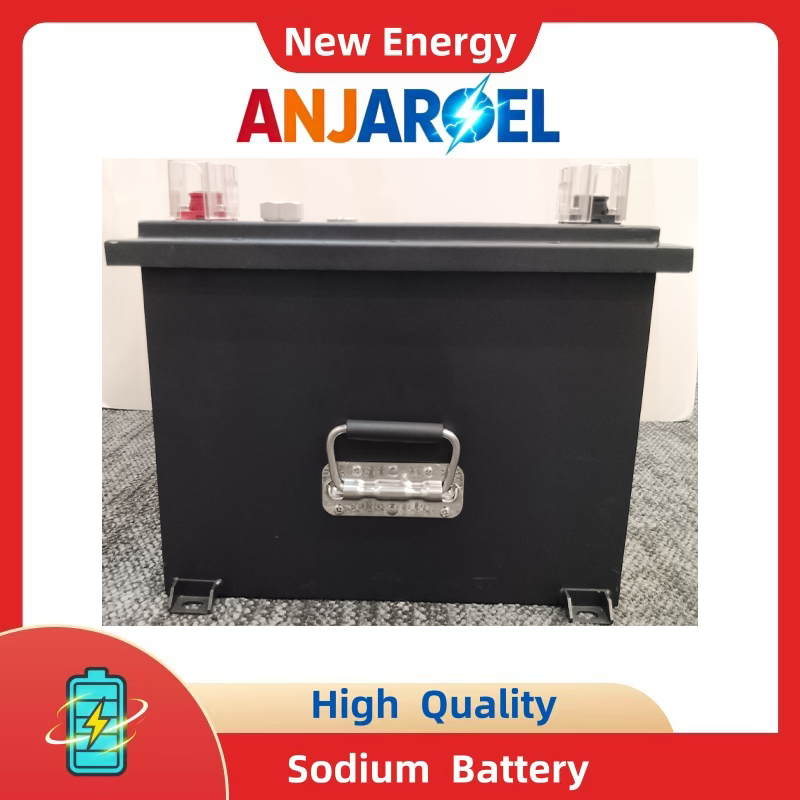

24V 200Ah Sodium-Ion Deep Cycle Truck Parking Start-Stop Sodium Battery
1. Product Introduction
This 24V 200Ah Sodium-Ion Deep Cycle Battery is designed for heavy-duty truck parking air conditioning and power systems. With a 24V rated voltage, 200Ah capacity, and over 10,000 cycle life, it offers exceptional durability and cold performance (-40°C to 60°C). Featuring built-in BMS for overcharge, over-discharge, over-current, and short-circuit protection, it supports 100A max charging and 200A continuous discharge current, making it ideal for long-haul trucks and off-grid power needs.
2. Key Advantages
1.Ultra-Long Cycle Life & DurabilityBuilt with sodium-ion technology, the battery delivers over 10,000 charge-discharge cycles, far exceeding the lifespan of lead-acid batteries. This reduces replacement costs and ensures reliable performance for years, even with frequent deep cycling.
2.Extreme Cold & Wide Temperature PerformanceDesigned for harsh environments, the battery operates reliably from -40°C to 60°C, making it perfect for trucks in cold northern regions. Unlike lead-acid batteries, it maintains high capacity and output in freezing temperatures, ensuring consistent power for parking air conditioning and electronics.
3.Built-In Smart BMS ProtectionThe integrated Battery Management System (BMS) provides comprehensive protection against overcharge, over-discharge, over-current, and short circuits. It also balances cells during charging, preventing damage from voltage imbalances and extending battery life.
4.High Current Output & Fast ChargingSupports 200A continuous discharge current, powering high-demand loads like truck air conditioners, refrigerators, and inverters. With a 100A max charging current, it quickly replenishes power during stops, minimizing downtime for long-haul drivers.
5.Eco-Friendly & Maintenance-Free DesignSodium-ion chemistry is environmentally friendly, free from toxic lead and heavy metals. The sealed, maintenance-free design eliminates the need for water topping or corrosion checks, making it ideal for use in truck cabins and remote locations.
3. Technical Specifications
Parameter | Specification |
Battery Type | Sodium-Ion Deep Cycle Battery |
Rated Voltage | 24V |
Rated Capacity | 200Ah |
Cycle Life | ≥10,000 cycles |
Max Charging Current | 100A |
Continuous Discharge Current | 200A |
Operating Temperature | -40°C ~ 60°C |
BMS Protection | Overcharge, Over-discharge, Over-current, Short-circuit |

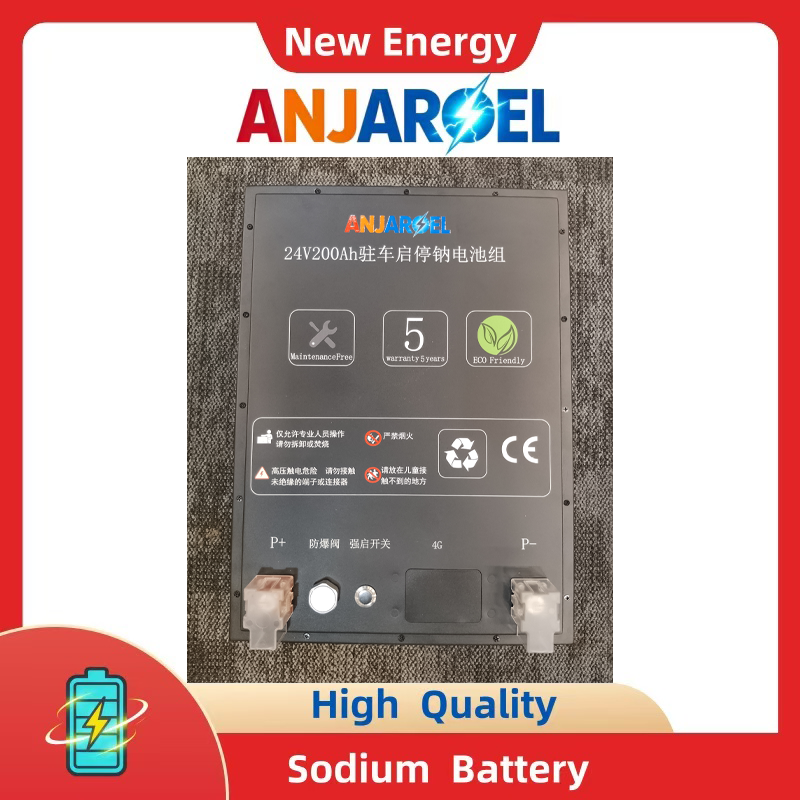

Output Ports | Positive/Negative Terminals |
Dimensions | 635 × 244 × 221 mm |
Weight | 48 kg |
Warranty | 5 years |
4. Primary Use Cases
1. Truck Parking Air Conditioning Systems
2.Long-Haul Truck Power Supply
Powers on-board electronics, refrigerators, and lighting systems for long-haul drivers. The high capacity and cycle life support extended trips without frequent recharging.
3. Off-Grid & Remote Power Systems
Ideal for remote cabins, construction sites, and RVs, where a durable, cold-resistant power source is needed. The sodium-ion technology performs well in extreme climates, unlike lithium-ion alternatives.
4. Emergency Backup Power
Serves as a reliable backup power source for trucks and vehicles, ensuring power availability during breakdowns or power outages. The BMS protection prevents damage from accidental misuse.
5. Operation Guide
Install the battery in a well-ventilated, secure location, connecting the positive and negative terminals correctly. Use a dedicated 24V sodium-ion charger to charge the battery, observing the 100A max charging current. The built-in BMS will automatically manage charging and discharging, protecting the battery from damage. Avoid exposing the battery to temperatures outside the -40°C to 60°C range.
6. FAQ
Q: Can this battery replace my truck's lead-acid battery?A: Yes, it is designed as a direct replacement for 24V lead-acid batteries, offering longer life, better cold performance, and higher current output.
Q: How long will the battery power a truck parking air conditioner?A: Runtime depends on the AC unit's power consumption. For example, a 1000W AC unit will run for approximately 4-5 hours on a full charge.
Q: Is the battery safe to use in cold weather?A: Yes, it operates reliably down to -40°C, maintaining high capacity and output even in freezing temperatures.
